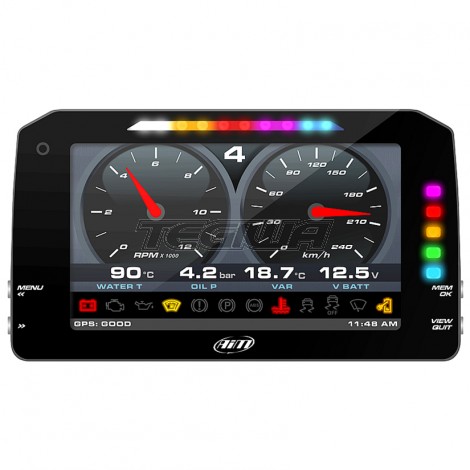

AiM MXP 6" TFT Display Dash Data Logger.
Our AiM MXP Dash Logger features a 6" wide colour TFT display, offering a great visual impact.
Key Features:
- 6" TFT display
- Configurable display
- 5 configurable RGB LEDs
- 10 configurable shift lights
- 8 analog inputs
- Second CAN
- Wifi connection
- Memory - 4GB
- Waterproof IP65
- Free race studio 3 download
AiM MXP TFT Dash Logger.
The MXP Dash Logger features a 6' wide colour TFT display which offers great visual impact. It is configurable to show all the data coming from your vehicles engine control unit (ECU).
The dash logger has an integrated shift array and configurable multicolour alarms, also drag and drop multi-page configuration. With Wi-Fi and USB connectivity, GPS module, Inertial platform, analog and digital inputs, motorsport connectors, 4GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.
This package is suitable for both cars and motorcycles.

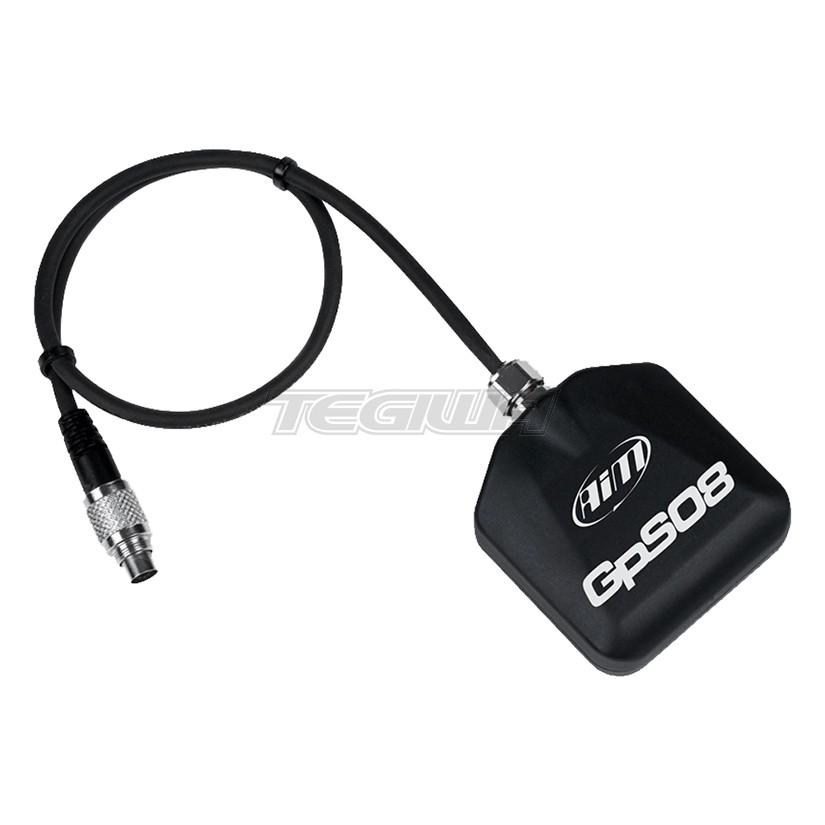

GPS08 Module
The GPS08 Module connected via CAN to the MXP makes your lap time calculation and track position analysis very easy. The MXP memory stores more Than 4,000 tracks from across the world with start and finish line coordinates. As soon as the MPX is switched on the GPS08 module will locate its position and identify track line coordinates to the MXP via your computer before going to the track using our Race Studio 3 Software.

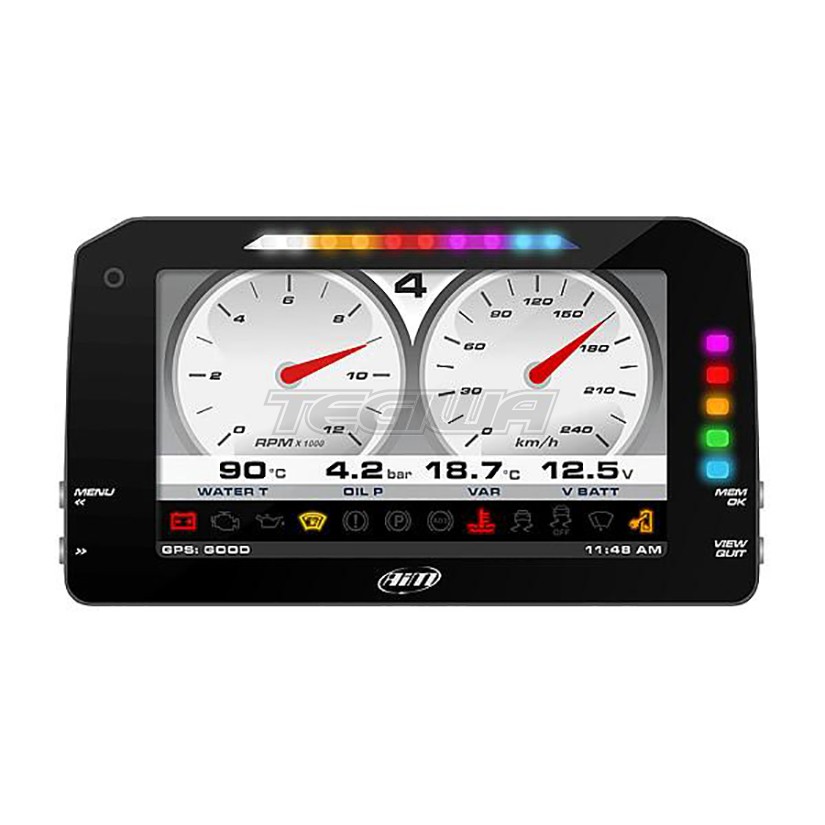

High Contrast TFT Display
The MXP dash logger has a high contrast 6" TFT display. It's visual quality is optimised as the ambient light sensor keeps the backlight at the best brightness levels, avoiding the screen from dazzling you when it gets dark, whilst keeping it bright and visible during the day.
Monitor Data
MXP can define all the custom pages you want. The MXP shows together with RPM scale. All the data you need like speed, water temperature, oil pressure and much more.
You can choose the custom pages you want, with four additional fields from a wide library of page styles. Which define which data you want to be shown with end scale and measuring units. You can swop between pages using the push buttons.
Flexible Shift Lights & Alarms
The 10 multi-coloured RGB shift lights can be customised to how you want them, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarms LEDs, you can configure them in order to turn them on / off depending on analogue or digital inputs, ECU values, expansion values, math channels or GPS information.
You choose the conditions and colours. Select a solid alarm or a flashing one, also the flashing frequency. It is also possible to configure an accompany text message on the display and set the alarm priorities.
CAN Output & Digital Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of you car or bikes control possibilities. MXP features two digital outputs. These low side type (switch to ground) can be configured in order to be activated and deactivated depending on the value of the analogue and digital inputs. This will allow you to automatically run external systems, such as to switch on & off additional lights or to activate or deactivate a cooling fan or circulation pump when a certain event happens.
Wi-Fi Connectivity
You can configure, calibrate and download your data wirelessly over a secure WiFi connection. Once the initial setup and configuration has been done using the USB cable.
Camera Inputs
Two analog inputs are available, to switch your display into a mirror camera, through pushbutton command or event management.
This is extremely in cars such as the Lotus Exige where the rear visibility is poor.

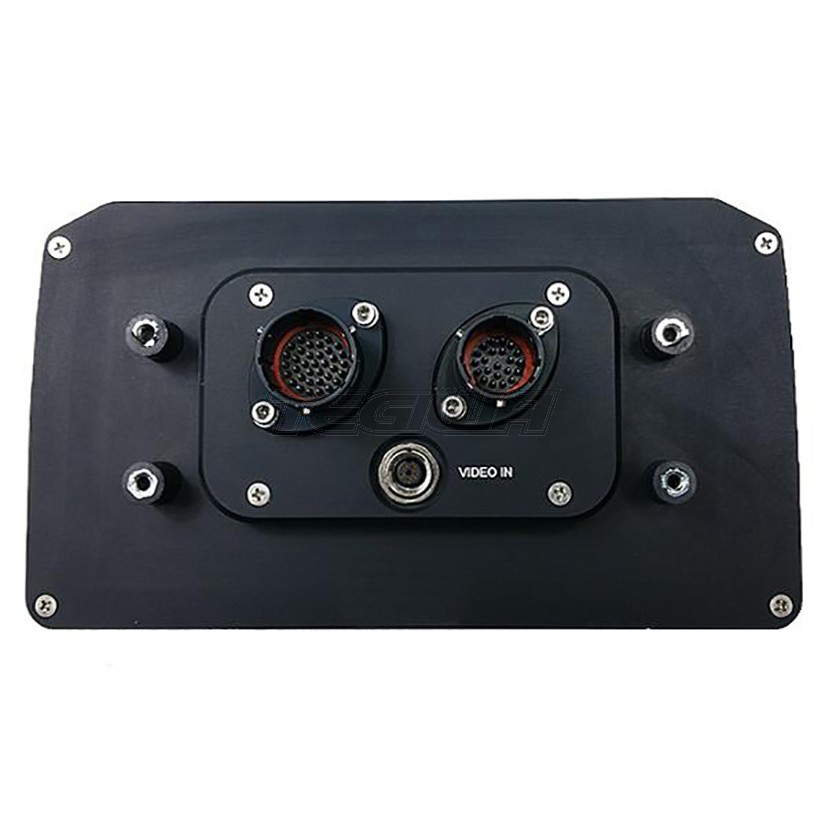

Pin Harness
You get the 37 pin harness as a standard with your MXP 6" TFT Dash Data Logger, you can add more data by purchasing a 22 pin harness as seen below.
MXP Connection Examples
More Info
| Manufacturer | AIM |
|---|---|
| Fitment | See Title |
| Colour | No |
| Note | No |
