AiM MXS 1.2 TFT Digital Display & Dash Logger

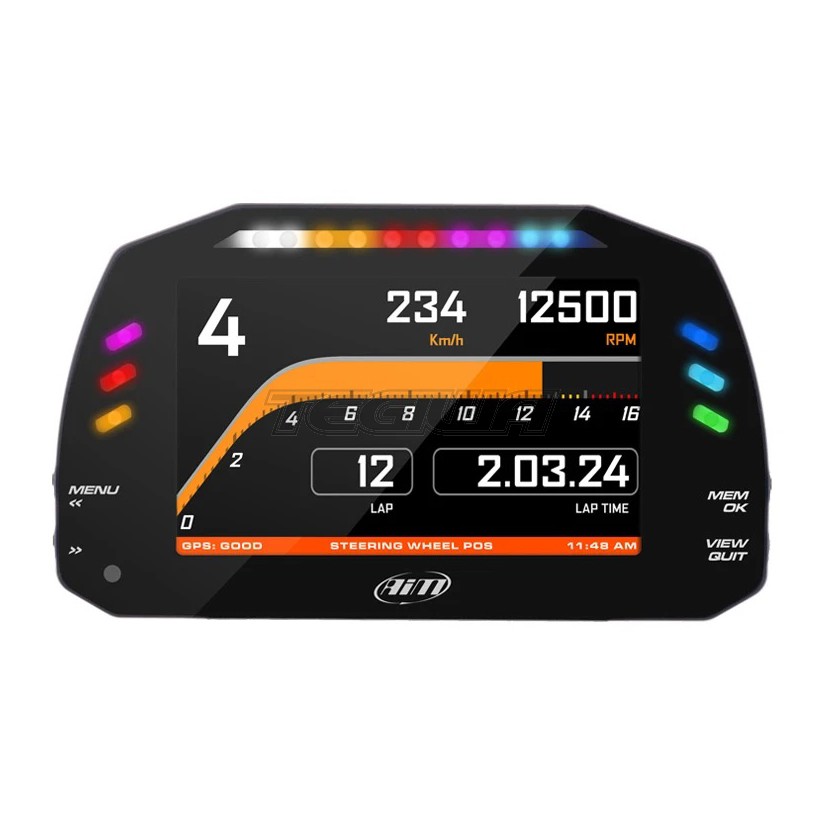

The MXS 1.2 TFT is a dash logger designed to acquire and display data coming from your ECU.
Key Features:
- 1000 + ECUs
- GPS08 Module
- Freely configurable pages
- High contrast TFT display
- 6 configurable RGB LEDs
- Two digital outputs
- 8 analog inputs
- Lap signal
- Wi-Fi connectivity
- GPS & track management
- 37 pin harness
- Free race studio 3 download
AiM MXS 1.2 Car Racing Dash Logger
The AiM MXS 1.2 5" display is fully configurable and easy to use.
The dash logger has been designed to acquire and display data coming from the ECU, the internal accelerometer and gyro, as well as the GPS08 Module that is included in the kit, analog and digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules. The 5" display has been designed for small cockpit installation.
Connecting the MXS 1.2 dash logger to your ECU is very simple. You can sample dozens of channels straight from your vehicles ECU. This is the quickest setup as you only need one connection cable to the ECU instead of multiple connections to analogue sensors.
The data you sample depends on the ECU but typically includes, RPM, engine load, throttle position, (TPS), oil, air, water temperature, battery voltage, speed gear, lambda value (air, fuel ratio).
There are 1000+ different ECUs which are constantly updated and upgraded for stock or racing.
CAN Output
The CAN output can send messages directly to an existing CAN network which will improve the range of your car's control possibilities.
High Contrast 5" TFT Display

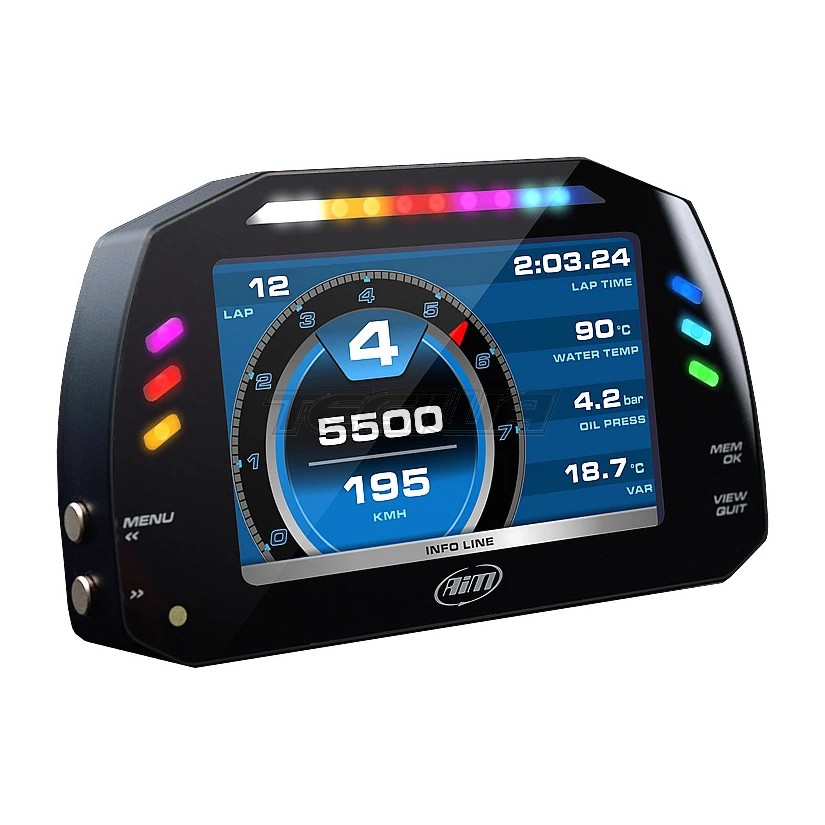

Create and customise as many pages or displays as you wish. Using different fonts and dimensions for all information received by the MXS dash logger.
Swapping between pages can be managed by pushing one or two pushbuttons, also an ambient light sensor keeps the backlight at optimum brightness levels.
Flexible Alarms
The MXS 1.2 features two digital outputs. Each of them can give an output of 1 amp at 12 volts. A wide range of external systems can be configured to turn on & off when a certain event happens, such as deactivating cooling fans or circulation pumps.
Integrated Shift Light
The MXS has an integrated 10 LED shift light. Chose from a host of advanced multi coloured RGB shift light patterns that can be customised to your liking, also for each unique gear when required.
GPS08 Module
GPS08 is included in the kit. Thanks to being lightweight and waterproof the GPS08 Module and the GPS software, you can immediately get your lap times and all the data needed for engine tuning as well as enhancing your driving technique.
The GPS08 Module is fast in satellite signal acquisition and reliable in adverse situations.
The GPS08 Module helps you get the important data such as chassis analysis, track position, speed, cornering in-line, lateral G and automatic lap times.
When ordering your MXS you have a choice of GPS08 Modules: 50cm cable, 1.3m cable (popular with motorcycles) 2m cable, 4m cable (common for cars). Also the 2 or 4m "roof version" with cable entry from underneath specifically for easy, permanent installation on closed cockpit cars, although many people are using these on motorcycle fairing to.
MXS Connection Example
Below is an example of items that can be added to our MXS for incrementing the performance and the data.
Pin Harness

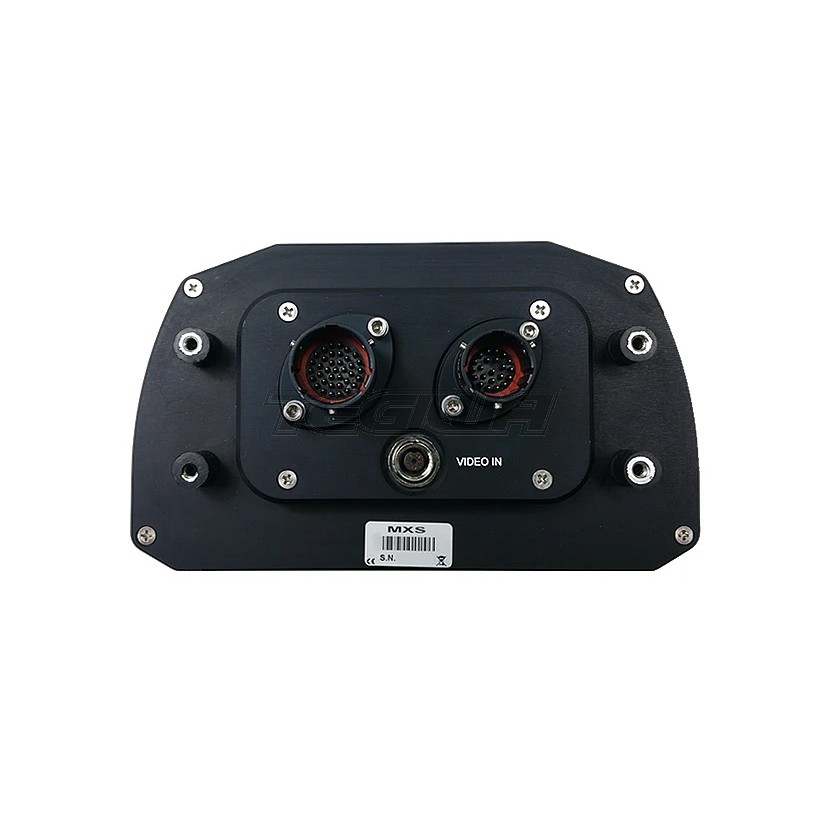

The 37 pin harness comes standard in the kit, should you need more data you can add our 22 pin harness as an optional extra.
Not Enough
The MXS 1.2 is also available in its Strada version. A dash logger for road use and also available as an IVA approved Kit.
See image below for MXS Strada Dash Display with Road Icons.
More Info
